Koso KOS-BA080050 Complete D2 Speedometer/Tachometer w/Fuel Level & Engine Temperature Gauge Kit Black for Harley-Davidson Touring 14-23 (when running Late Model Breakout/Street Bob Gauge Housing)
Koso KOS-BA080050 Complete D2 Speedometer/Tachometer w/Fuel Level & Engine Temperature Gauge Kit Black for Harley-Davidson Touring 14-23 (when running Late Model Breakout/Street Bob Gauge Housing)
The Story

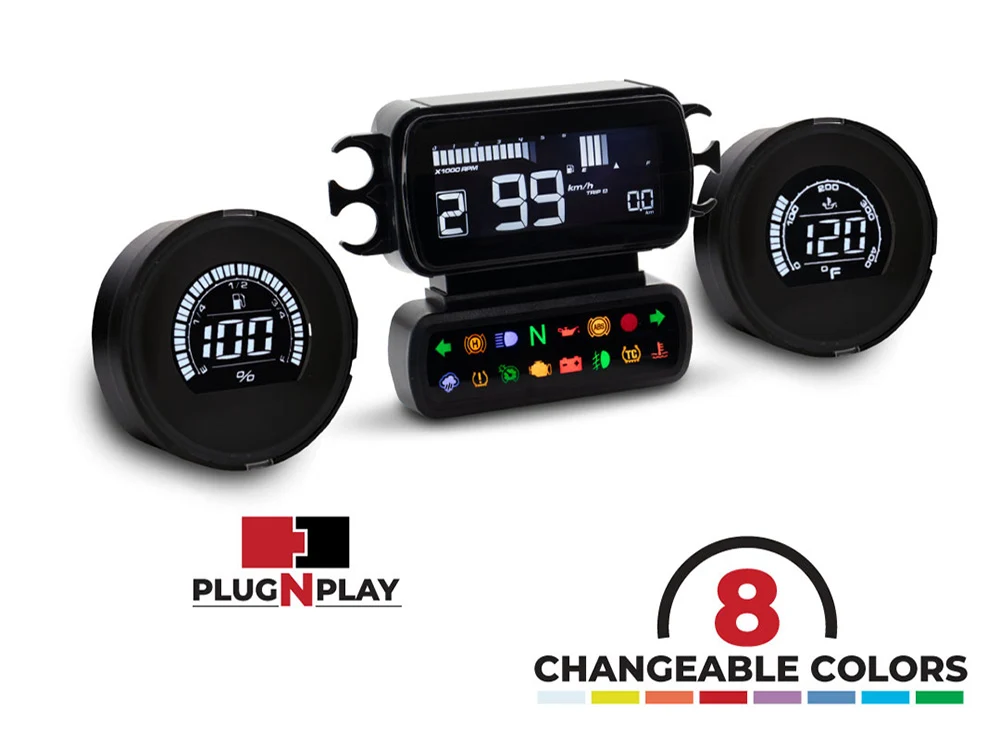

This new plug and play D2 gauge kit for Baggers now comes with the fuel level & engine temperature meters, giving a unique look and experience to your motorcycle.
It is also equipped with an 8-color changeable LCD display and features vital readings such as engine temperature, battery voltage, tire pressure, gear indicator and a complete system of indicator lights to monitor your bike’s vital signs. This gauge will fit directly into the stock harness and works with your bike’s CANBUS system.
*To access settings on CVO models, you must turn ON the run/stop switch so that the bike will not turn off. Then you can make your adjustments to the settings on the gauge.

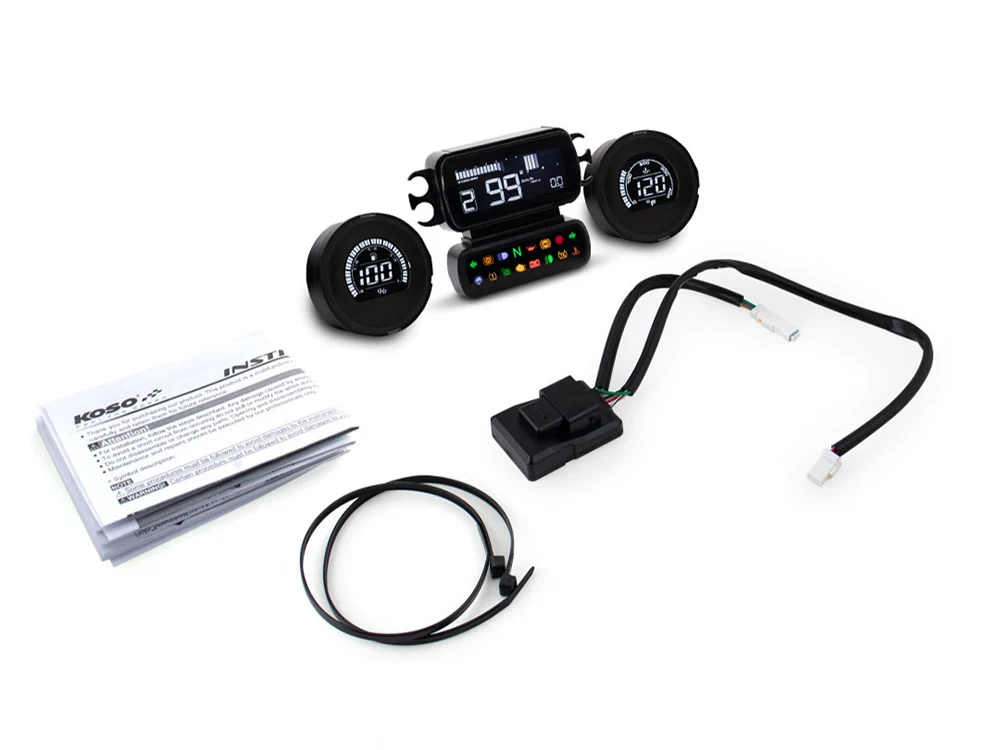

**If you already own the D2 gauge for Baggers (BA080030), you can purchase the gauge kit part# BA080051 as an add-on to your gauge. (Includes fuel level, engine temp meter & adapter harness.)

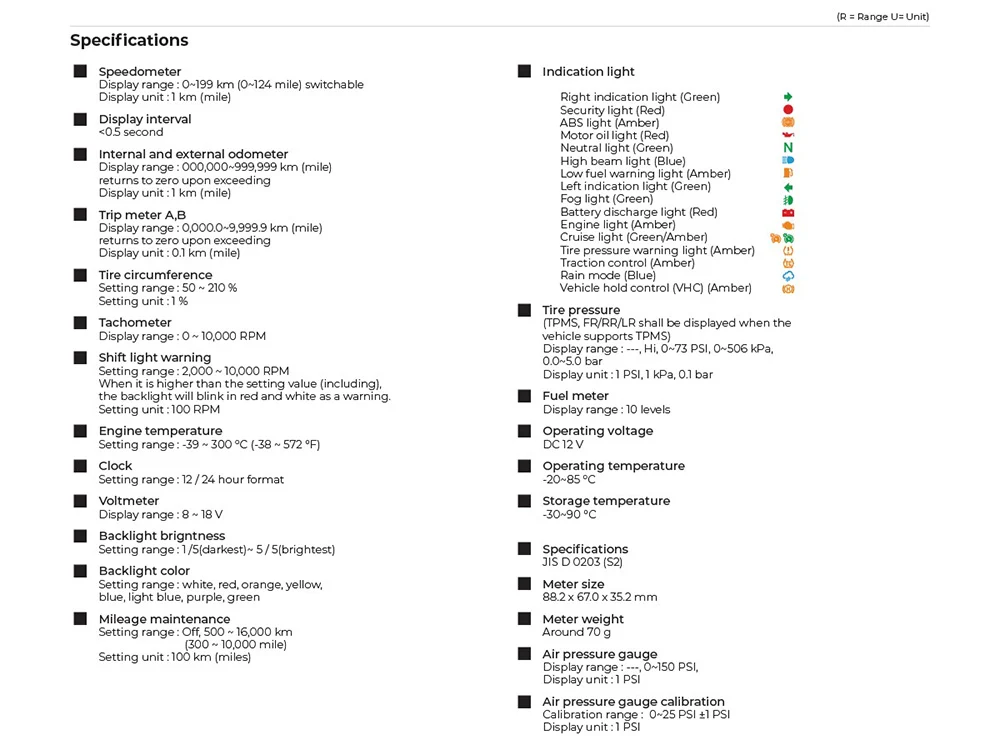

Specifications
(R= Range U=Unit)
-
Backlight color
R: white, red, orange, yellow, blue, light blue, purple, green -
Engine temperature
R: -38 ~ 572 °F (-39 ~ 300 °C) -
Backlight brightness
R: 1/5 (darkest) ~ 5/5 (brightest) -
Fuel Meter
R: 10 levels -
Operating voltage
DC 12 V -
Operating temperature
-20 ~ 85 °C -
Storage temperature
-30 ~ 90 °C -
Specifications
JIS D 0203 (S2)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This new plug and play D2 gauge kit for Baggers now comes with the fuel level & engine temperature meters, giving a unique look and experience to your motorcycle.
It is also equipped with an 8-color changeable LCD display and features vital readings such as engine temperature, battery voltage, tire pressure, gear indicator and a complete system of indicator lights to monitor your bike’s vital signs. This gauge will fit directly into the stock harness and works with your bike’s CANBUS system.
*To access settings on CVO models, you must turn ON the run/stop switch so that the bike will not turn off. Then you can make your adjustments to the settings on the gauge.
**If you already own the D2 gauge for Baggers (BA080030), you can purchase the gauge kit part# BA080051 as an add-on to your gauge. (Includes fuel level, engine temp meter & adapter harness.)
Specifications
(R= Range U=Unit)
-
Backlight color
R: white, red, orange, yellow, blue, light blue, purple, green -
Engine temperature
R: -38 ~ 572 °F (-39 ~ 300 °C) -
Backlight brightness
R: 1/5 (darkest) ~ 5/5 (brightest) -
Fuel Meter
R: 10 levels -
Operating voltage
DC 12 V -
Operating temperature
-20 ~ 85 °C -
Storage temperature
-30 ~ 90 °C -
Specifications
JIS D 0203 (S2)
